주식회사 한팩은 테프론 캡슐 오링의 전문 수입업체로서, 지난 30여년간의 풍부한 경험과 Know-how, Network로 최상의 품질과 최적의 가격,
납기를 제공해 드리고 있습니다.

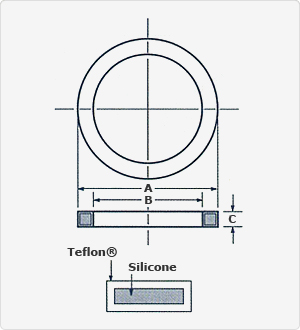

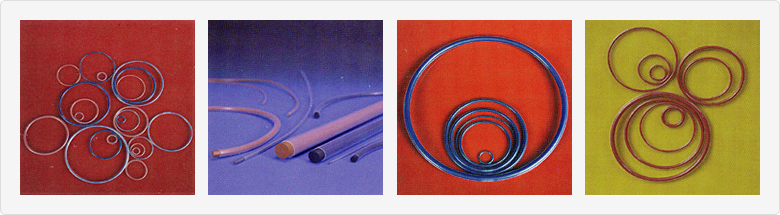

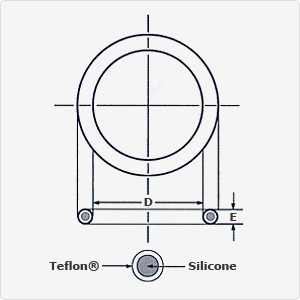

테프론 캡슐 오링(Teflon Encapsulated O-Ring)은 우주항공, 반도체, 석유화학산업뿐만 아니라 일반 산업의 넓은 분야에 응용이 가능한 오링
입니다. FEP, PFA TUBE안에 내부 탄성체 Silicone, Viton®, EPDM, Stainless Steel Spring의 탄성체 오링을 넣어 완전 밀봉 처리하여 탄성을
준 제품으로 모든 화학약품과 폭넓은 온도(-250℃ ~ +260℃)에 사용 가능합니다.
내열성 : 폭넓은 온도 범위(-250℃ ~ +260℃)에 사용 가능합니다.
폭넓은 규격 : AS568 Series, P Series, G Series, Inch Size, m/m Size의 비규격 Size 제작(from C.S 1.50m/m ~ to C.S 31.75m/m)이
가능합니다. 아래 비규격 생산 가능 규격표를 참조 바랍니다.
비규격 생산 가능 규격표
Cross
Section
A
mm
Nominal
Squeeze
S
Groove
Depth
D
Grrove
Width
W
I.D.
Min.
(in.)
O.D.
Max.
(in)
.062±.005
1.57
.018
.044
.085
.300
2.50
.070±.005
1.78
.022
.048
.097
.300
5.50
.077±.005
1.96
.022
.055
.104
.480
5.50
.080±.005
2.03
.022
.058
.107
.480
5.50
.093±.005
2.36
.025
.068
.123
.480
10.0
.098±.005
2.49
.025
.073
.128
.480
10.0
.100±.005
2.54
.025
.075
.130
.480
10.0
.103±.005
2.62
.025
.078
.133
.480
10.0
.107±.005
2.72
.028
.079
.140
.500
10.0
.110±.005
2.79
.030
.080
.145
.500
10.0
.115±.005
2.92
.030
.085
.150
.500
10.0
.118±.005
3.00
.030
.088
.153
.500
10.0
.122±.005
3.10
.030
.092
.157
.500
10.0
.125±.005
3.18
.030
.095
.160
.500
20.0
.135±.006
3.43
.030
.105
.170
.500
20.0
.139±.006
3.53
.030
.109
.174
.500
20.0
.148±.006
3.76
.032
.116
.188
.750
20.0
.157±.006
3.99
.032
.125
.197
.750
25.0
.165±.006
4.19
.032
.133
.205
1.00
25.0
.170±.006
4.32
.035
.135
.213
1.00
25.0
.177±.006
4.50
.037
.140
.222
1.00
25.0
.185±.008
4.70
.040
.145
.233
1.00
25.0
.194±.008
4.93
.040
.154
.242
1.10
25.0
.210±.008
5.33
.045
.165
.263
1.10
ANY
.220±.010
5.59
.047
.173
.275
1.25
ANY
.225±.010
5.72
.047
.178
.280
1.50
ANY
.236±.010
5.99
.047
.189
.291
1.50
ANY
.250±.010
6.35
.050
.200
.308
1.75
ANY
.275±.010
6.99
.050
.225
.333
2.25
ANY
.296±.010
7.52
.055
.241
.359
3.00
ANY
.315±.010
8.00
.060
.255
.385
3.25
ANY
.335±.015
8.51
.065
.270
.410
3.50
ANY
.355±.015
9.02
.065
.290
.430
3.75
ANY
.378±.015
9.53
.070
.305
.455
4.00
ANY
.395±.015
10.03
.075
.320
.480
4.00
ANY
.433±.015
11.00
.080
.353
.523
7.25
ANY
.475±.015
12.07
.085
.390
.570
8.00
ANY
.500±.015
12.70
.100
.400
.615
12.0
ANY
.550±.025
13.97
.110
.440
.675
12.0
ANY
.590±.025
14.99
.125
.465
.730
15.0
ANY
.625±.025
15.88
.125
.500
.765
15.0
ANY
.750±.035
19.05
.200
.550
.965
18.0
ANY
.787±±.035
19.99
.225
.562
1.027
25.0
ANY
.100±±.050
25.40
.250
.750
1.265
37.0
ANY
Teflon Encapsulated O-Rin의 강점 Completely Enclosed Core Energizer Chemically Inert Live Seal High Compression Set Resistance Smooth Surface Uniform Diameters and Cross Sections Virtually Unlimited Range of Inch and Metric Sizes

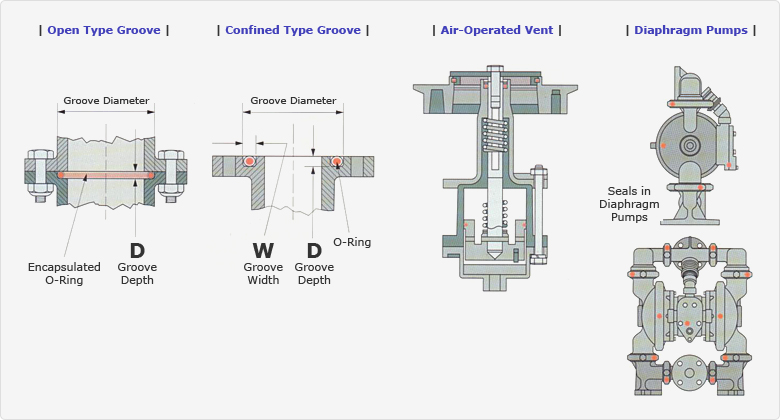

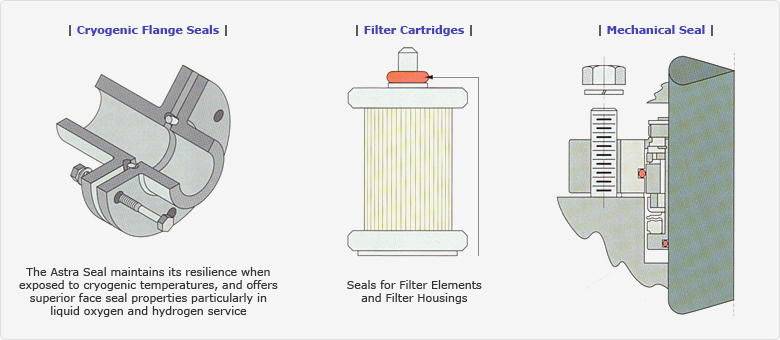

테프론 캡슐 오링 적용부위
Typical Applications
Mechanical Seals
Reusable Syringes
Low Pressure, Quick
Face Flange Seals
Seals in Diaphragm Pumps
Air-Operated Vents

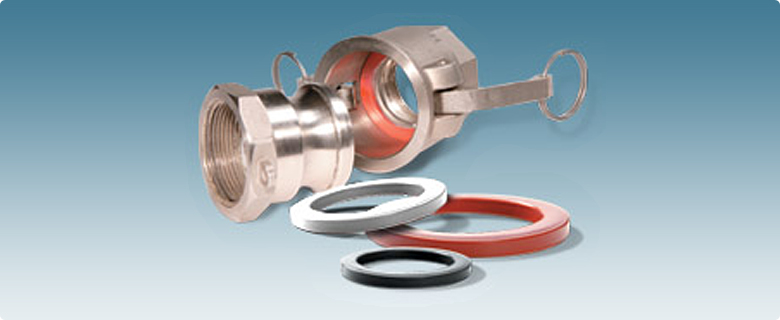

Disconnect Piping Systems
Glass Heat Exchanger
Cryogenics
Gas Service
Relied and Emergency Valves
Tube/Tubesheet Seals
Mechanical Pumps
Corrosive Fluid Seals
Large Diameter Access Covers
Dairy and Beverage Service
Filter Elements
High Purity Water
Pressure Vessels
Filter Housings
Vacuum Service
Compressors

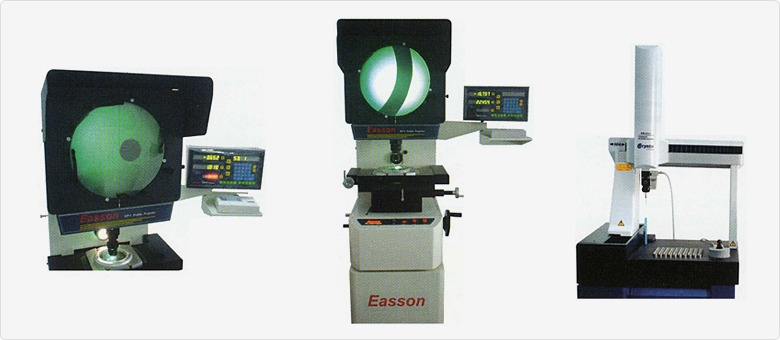

품질검사
- 3D 전수검사를 통하여 무결점 오링을 제공하고 있습니다.
품질보증 : Certificate to ISO9001 and ISO9002 (ISO9001.2000 from 01/01/05) 제공 가능합니다.
의약품, 식품분야에도 안전합니다.
- Food and Drug FDA administration Title 21 Regulation 177.1550 (Certificate of conformance 제공 가능합니다.)
재고보유(STOCK-HOLDING)
-
AS568 Series 규격에 대한 재고를 상시 보유하고 있습니다. 아울러 P, G, V Series, 비규격 Size에 대한 최상의 납기를 제공하고 있습니다.
Extreme low temperatures make most O-Rings brittle which in turn leads to failure. The Astra seal was created by Aerospace Engineer to combat the harch environments associated with liquid oxygen and the problems involved with sealing in other cold media, such as liquid nitrogen and hydrogen.
Since then the seals have been successfully used in several space shuttle/ rocket launches and a multitude of other applications by organizations such as Boeing, NASA, Lockheed, and the newly founded Space X.

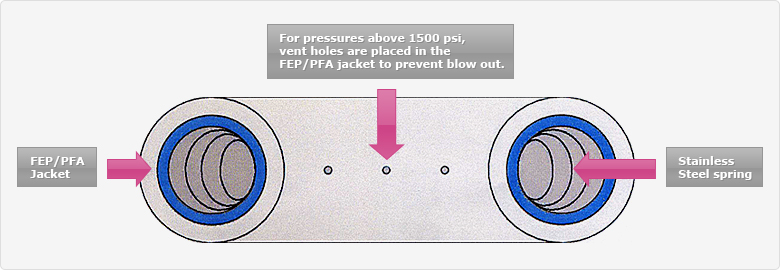

Description

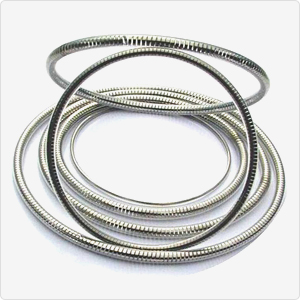

The Astra seal is comprised 302 stainless flat wound ribbon spring
encapsulated in either a FEP or PFA jacket to form an O-Ring
Spring Material ASTM Type 302/AMS 5059
Temperature Range
FEP/Astra : -250℃ to +204℃
PFA/Astra : -250℃ to +260℃
All our products are manufactured through our world class quality system; our quality rating is so high that we achieve a reject rate of less than 0.03%. As always all our products are supported by our excellent levels of customer service, which allow you to improve your profits, increase your market share plus add value to your business. We would welcome any questions or enquiries you have in relation to this product, please contact our customer support team, with any further requests.
Available cross sections and force required to compress(pounds per linear inch)
Cross
Section
squeeze
Groove
Depth
Groove
Width
Minimum
ID
Force
Pounds
1.91mm
0.56mm
1.35mm
2.67mm
12.70mm
40
2.40mm
0.61mm
1.78mm
3.18mm
19.05mm
40
2.62mm
0.76mm
1.90mm
3.53mm
19.05mm
45
2.93mm
0.76mm
2.16mm
3.94mm
31.75mm
40
3.00mm
0.76mm
2.24mm
3.96mm
31.75mm
45
3.10mm
0.76mm
2.34mm
4.07mm
31.75mm
50
3.53mm
0.76mm
2.79mm
4.95mm
31.75mm
65
3.76mm
0.84mm
2.92mm
4.95mm
38.10mm
85
4.00mm
0.89mm
3.10mm
5.08mm
38.10mm
70
4.32mm
1.02mm
3.30mm
5.84mm
38.10mm
90
4.50mm
1.02mm
3.48mm
6.02mm
38.10mm
100
4.88mm
1.12mm
3.76mm
6.48mm
44.45mm
110
5.34mm
1.14mm
4.19mm
7.11mm
50.80mm
140
5.59mm
1.14mm
4.44mm
7.37mm
50.80mm
140
5.72mm
1.14mm
4.57mm
7.49mm
50.80mm
150
6.35mm
1.27mm
5.08mm
8.25mm
76.20mm
110
6.99mm
1.27mm
5.71mm
8.89mm
88.90mm
95
8.00mm
1.52mm
6.48mm
9.90mm
101.60mm
80
Excessive stretching must be avoided when installing Astra seals to ensure the coils do not separate.
Astra seals are best used in OD sealing application.
